GE Logiq P6

An ultrasound machine uses high-frequency sound waves (sonography) to create real-time images (sonograms) of internal body structures, functioning by sending sound waves from a transducer, which bounce off tissues, return as echoes, and are processed by a computer to form a picture, offering a safe, non-invasive look at organs, blood flow, and tissues without using ionizing radiation like X-rays. Key components include the transducer (probe), pulser, beam former, processor, and display, with operators adjusting settings like gain and focus to optimize image quality.

How It Works (The Basic Process)

Emission: A transducer, a handheld probe, sends out high-frequency sound waves (MHz range) into the body.

Reflection: These sound waves travel through soft tissues and reflect (echo) back when they hit boundaries between different tissues (like fluid, fat, muscle, bone).

Reception: The transducer detects these returning echoes.

Processing: The machine’s computer converts the timing and strength of these echoes into electrical signals, then processes them into a real-time image (sonogram) on the screen.

Key Components & Concepts

Transducer (Probe): The part that touches the skin, emits sound, and receives echoes; different probes are used for different body parts/depths.

Gain: Controls the brightness/contrast of the image (adjusts overall image sensitivity).

Focus: Narrows the sound beam at a specific depth to improve detail.

Modes: Different displays like B-mode (brightness/2D), M-mode (motion), Doppler (blood flow color-coded).

Why It’s Used (Applications)

Obstetrics/Gynecology: Pregnancy scans, ovarian cysts, fibroids.

Cardiology: Heart function, blood flow.

Vascular: Detecting clots, narrowing/widening of blood vessels.

Abdominal: Examining liver, kidneys, gallbladder.

Procedural Guidance: Guiding needles for biopsies or anesthesia.

Safety

Generally considered safe and non-invasive.

Does not use ionizing radiation (unlike X-rays, CTs).

GE Logiq P6 Features

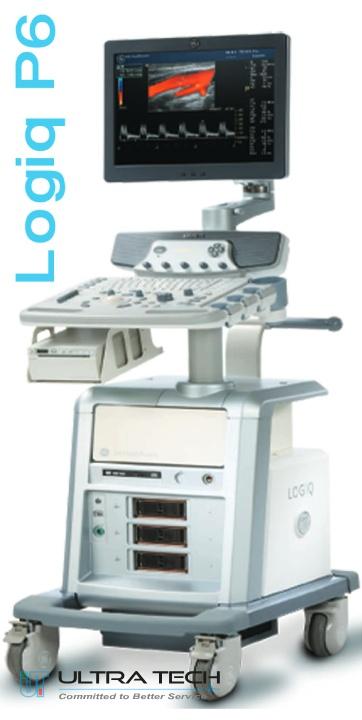

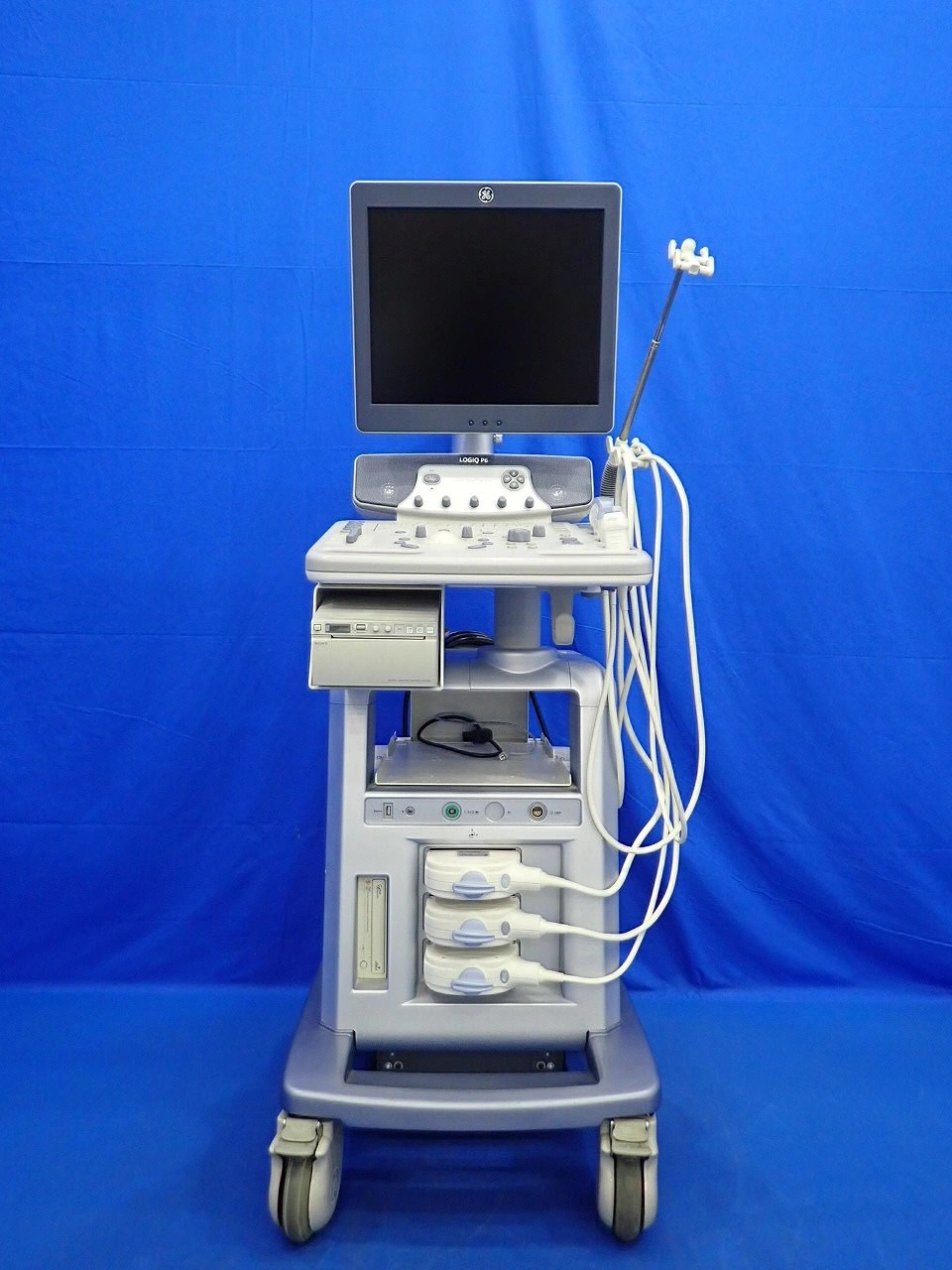

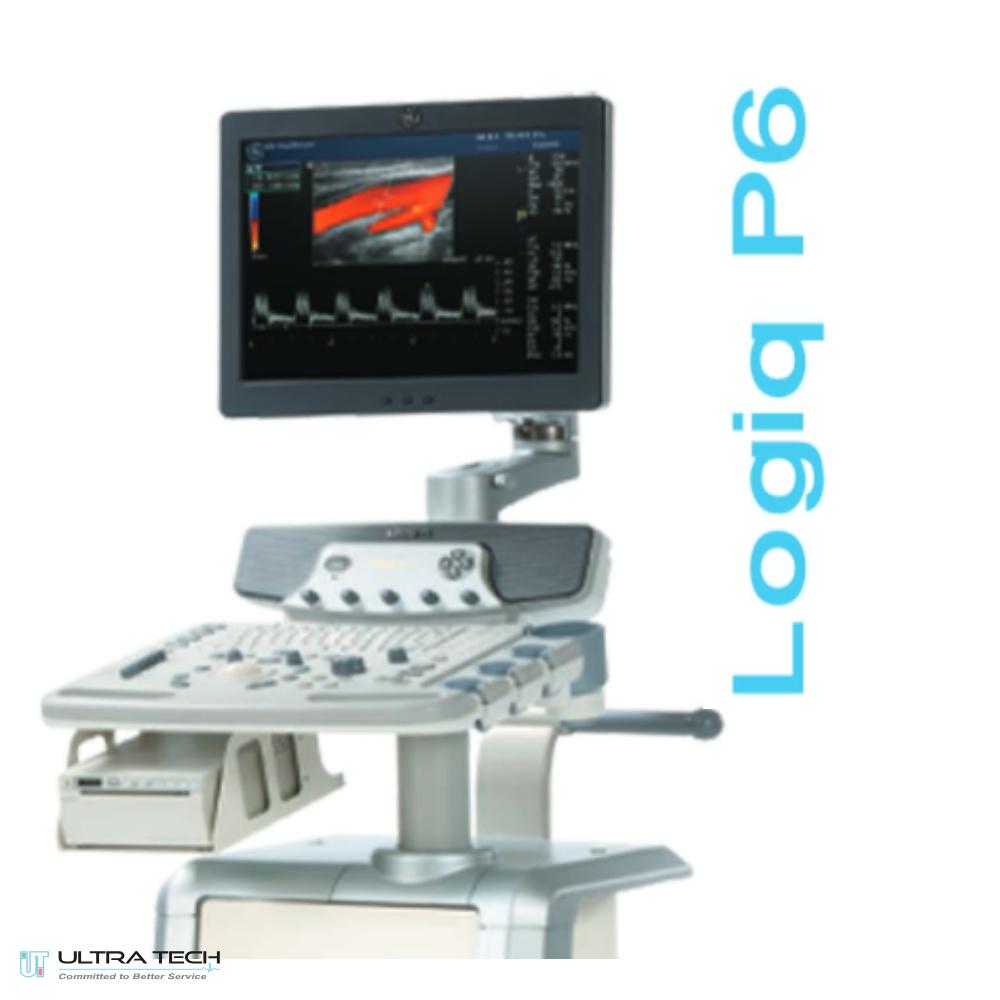

The GE Logiq P6 is an ultrasound system that offers 3D and 4D real-time imaging for a variety of applications. These applications include vascular, abdominal, gynecology, and cardiac. The Logiq P6 uses Speckle reduction and Crossxbeam imaging to enhance the images of organs with high resolution and contrast to improve the color images of the ultrasound. The GE ultrasound imaging system comes with a 17-inch display monitor, a patient database with image archiving, and automatic optimization of images. The GE Logiq P6 is a lightweight ultrasound system with a small footprint, making it easy to maneuver. The previous version of the GE Logiq Ultrasound is the GE Logiq P5.

• TruScan Architecture – featuring an exclusive, software-intensive ultrasound imaging platform that gives you unsurpassed computational power, image-manipulation capability, workflow flexibility, and product upgrade-ability, via software or hardware.
• TruAccess – is a GE-exclusive, raw-data processing technology that changes the future of ultrasound imaging. By accessing raw data, TruScan achieves excellent image quality and ensures unsurpassed today’s image management tomorrow.
• SmartScan – utilizes new advances in operating algorithms and system operations to improve image acquisition and patient throughput while increasing diagnostic confidence and exam consistency.
• ComfortScan – our most advanced ergonomic design ever, helps maximize productivity and simplify every exam you perform.

GE Logiq P6 Specifications

Physical Specifications

• Height: 1470 max; 1250 min
• Width: 43cm
• Depth: 64cm
• Weight: Approx. 80 kg (176 lb.)

Power

• Voltage: 100-120Vac or 220-240Vac
• Frequency: 50/60 Hz
• Power: Max. 750 VA with Built-in and On-Board Peripherals
• Maximum Thermal Output: 2200 BTU/hr

Console Design

• 3 Active Probe Ports
• Integrated HDD (Capacity: 80GB)
• Integrated DVD-R/W Drive
• Onboard Storage for Peripherals (max 3 peripherals)
• B/W-printer, color printer, DVD video recorder
• Wheel diameter: 12.5cm
• Probe holders, removable for cleaning and washing
• Gel holder, removable for cleaning and washing
• Air filters, easily removable
• Front handle

Operator Keyboard

• Width: 43cm
• Height: 84 – 90cm
• Alphanumeric Keyboard
• Ergonomic Hard Key Operations
• Indicator Lights Identify Activated Keys
• Integrated Recording Keys for Remote Control of Up to 2 Peripheral Devices and DICOM Devices
• 8 TGC Pods, with Re-mapping Functionality at Any Depth
