GE LOGIQ P7

An ultrasound machine uses high-frequency sound waves (sonography) to create real-time images (sonograms) of internal body structures, functioning by sending sound waves from a transducer, which bounce off tissues, return as echoes, and are processed by a computer to form a picture, offering a safe, non-invasive look at organs, blood flow, and tissues without using ionizing radiation like X-rays. Key components include the transducer (probe), pulser, beam former, processor, and display, with operators adjusting settings like gain and focus to optimize image quality.

How It Works (The Basic Process)

Emission: A transducer, a handheld probe, sends out high-frequency sound waves (MHz range) into the body.

Reflection: These sound waves travel through soft tissues and reflect (echo) back when they hit boundaries between different tissues (like fluid, fat, muscle, bone).

Reception: The transducer detects these returning echoes.

Processing: The machine’s computer converts the timing and strength of these echoes into electrical signals, then processes them into a real-time image (sonogram) on the screen.

Key Components & Concepts

Transducer (Probe): The part that touches the skin, emits sound, and receives echoes; different probes are used for different body parts/depths.

Gain: Controls the brightness/contrast of the image (adjusts overall image sensitivity).

Focus: Narrows the sound beam at a specific depth to improve detail.

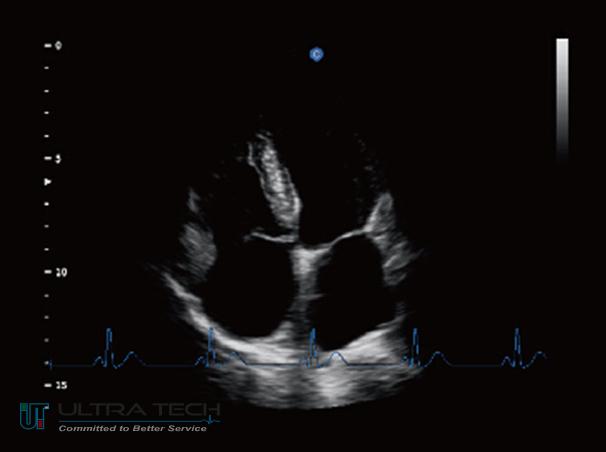

Modes: Different displays like B-mode (brightness/2D), M-mode (motion), Doppler (blood flow color-coded).

Why It’s Used (Applications)

Obstetrics/Gynecology: Pregnancy scans, ovarian cysts, fibroids.

Cardiology: Heart function, blood flow.

Vascular: Detecting clots, narrowing/widening of blood vessels.

Abdominal: Examining liver, kidneys, gallbladder.

Procedural Guidance: Guiding needles for biopsies or anesthesia.

Safety

Generally considered safe and non-invasive.

Does not use ionizing radiation (unlike X-rays, CTs).

The LOGIQ™ P7 is designed to make ultrasound examinations fast, efficient, and user-friendly. With customizable workflows and productivity tools, it is the ideal choice for a personalized, patient-centric, and practical ultrasound system. Whether you’re managing a busy schedule or seeking reliable diagnostic imaging, the LOGIQ P7 delivers consistent performance and ease of use.

Make It Easy

The LOGIQ P7 is built to simplify every aspect of your workflow:

• Easy to operate: Intuitive controls and accessible features.
• Easy to acquire diagnostic images: High-quality imaging with minimal adjustments.
• Easy to access features and applications: Streamlined interface for quick navigation.
• Easy to manage a busy schedule: Efficient tools to save time.
• Easy to receive support: Comprehensive training and service options.
• Easy to afford: A budget-friendly solution without compromising quality.

Introducing the LOGIQ P7

The LOGIQ P7 from GE Healthcare is a general imaging ultrasound system designed for quick diagnostics and busy schedules. Whether you need immediate triage or a comprehensive exam, the LOGIQ P7 delivers:

• Consistent image quality
• Comprehensive application coverage
• Ease of use for timely, confident decision-making.

Innovative My Page: Simplified User Controls

The LOGIQ P7 features My Page, a personalized digital interface that simplifies user controls:

• Personalize to user preference: Customize workflows and presets.
• Large 10.4-inch touchpanel: Easy-to-navigate interface.

My Page allows you to:

• Customize workflow preferences.
• Populate the touchscreen with use-case presets, including:
  • Measurements
  • Body patterns
  • Comments
  • Functions
• Access frequently used features with user-defined keys.

With My Page, simply log in, select the exam type, and start scanning. The system is easy to learn and supports high efficiency for busy schedules.

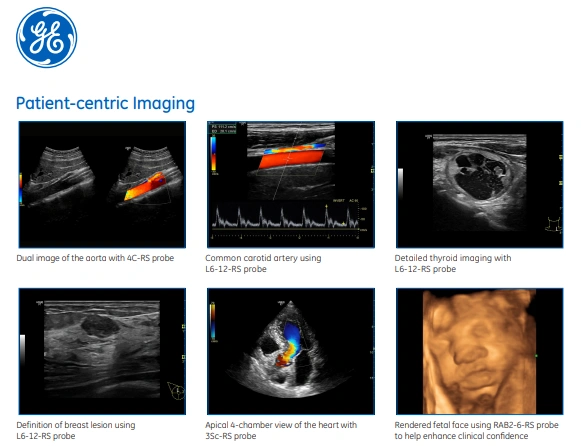

Patient-Centric Design for Excellent Care

The LOGIQ P7 enhances diagnostic confidence across a wide range of patient exams:

Provide High-Quality Diagnosis

• Excellent image quality with minimal tweaking required.
• Superb B-Mode spatial and contrast resolution.

Address Various Clinical Needs

• Wide selection of high-quality probes for excellent exam coverage, including:
  • Abdominal
  • Small parts
  • Vascular
  • Cardiac
  • Musculoskeletal
  • OB/GYN imaging.

Apply Advanced Imaging Tools

• Utilize advanced tools when needed, including:
  • B-Flow™
  • 3D/4D imaging
  • Elastography
  • Stress Echo
  • TVI/TVD.

Practical Design for Usability and Investment Value

The LOGIQ P7 adapts to your working style, preferences, and needs throughout the day:

Designed for User Comfort and Easy Workflow

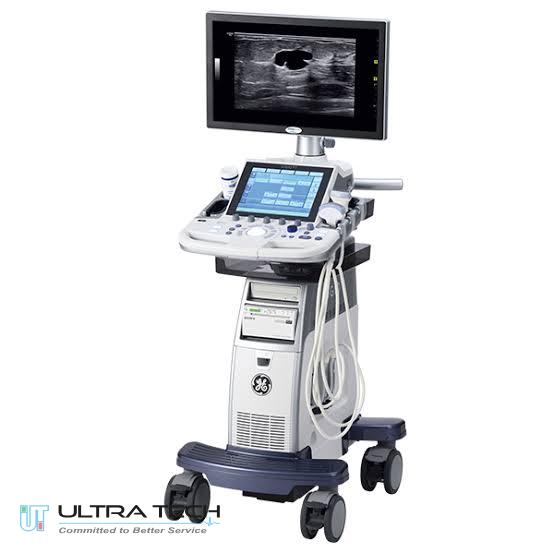

• Large 21.5-inch monitor and accessible 10.4-inch touchscreen.
• Simple operating panel design with fewer physical keys.
• Fully articulating arm for flexible positioning.
• Compact, lightweight design for small spaces and enhanced mobility, including:
  • Wireless LAN
  • Power Assistant battery operation.
• Digital TGC and digital keyboard.
• Windows® 7 operating system with 64-bit computing.

Increase Exam Speed and Efficiency

• Automated tools for fast exams, including:
  • Auto Image Optimization
  • Auto IMT
  • AutoEF
  • Measure Assistant
  • Compare Assistant
  • Scan Assistant.

Easy Access to Support

• My Trainer: On-board training modules to accelerate operational confidence.
• LOGIQ Club website: Educational resources to optimize system utilization.
• Purchasable service agreement options, including remote service capabilities such as:
  • Remote system diagnostics
  • Software downloads to support equipment uptime.

Conclusion

The GE LOGIQ P7 is a versatile, user-friendly ultrasound system that combines personalization, patient-centric care, and practicality. With its advanced imaging tools, customizable workflows, and budget-friendly design, the LOGIQ P7 is the ideal choice for clinicians seeking efficiency, reliability, and excellent patient care.
