ECG Machine 12 Channel

An ECG (Electrocardiogram) machine is a diagnostic device that records the heart’s electrical activity, showing its rate, rhythm, and strength, by placing electrodes on the skin, helping to detect issues like heart attacks, arrhythmias, or enlarged heart. It’s a fast, non-invasive, and painless test that provides a graph (the electrocardiogram) of the heart’s natural electrical signals, crucial for diagnosing various heart conditions and monitoring treatment effectiveness.

How it works

Electrodes:

Small patches stick to your chest, arms, and legs, connected by wires to the machine.

Electrical Signals:

The heart naturally produces electrical impulses that coordinate its beats; the ECG machine captures these.

Recording:

It translates these signals into a visual graph (voltage over time) to show the heart’s speed, regularity, and the timing of its electrical impulses.

What it detects

Irregular heartbeats (arrhythmias), Heart attacks (myocardial infarction), Coronary heart disease, Enlarged heart, and How well heart treatments are working.

Types of ECGs

Resting ECG: Taken while you lie down and rest.

Stress ECG (Exercise ECG): Performed while you exercise (e.g., on a treadmill) to see how the heart responds to exertion.

Portable/Wearable Devices: Smartwatches can take single-lead ECGs, but a full clinical reading by a provider is best.

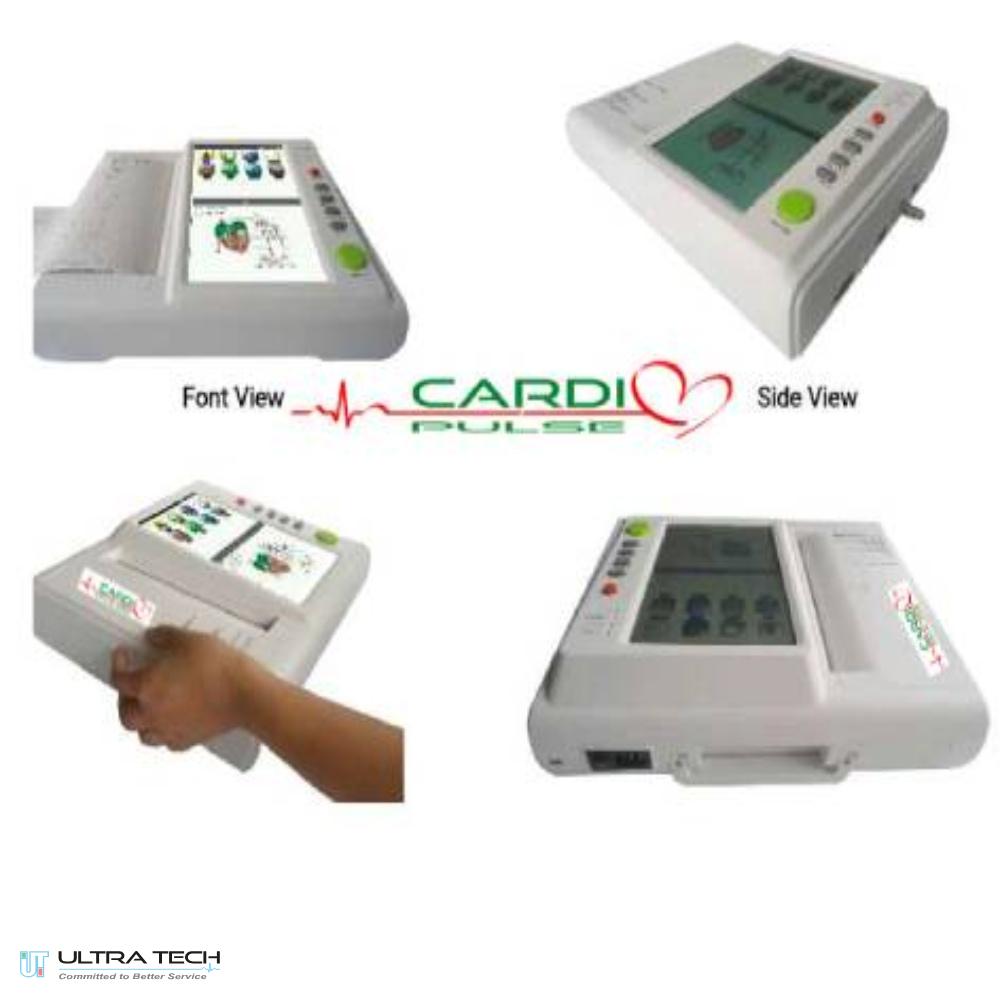

Cardio Pulse is Advanced Electrocardiograph CP-1012

The 12-channel electrocardiograph CP1012 helps caregivers be productive from the first ECG. Simple is better.

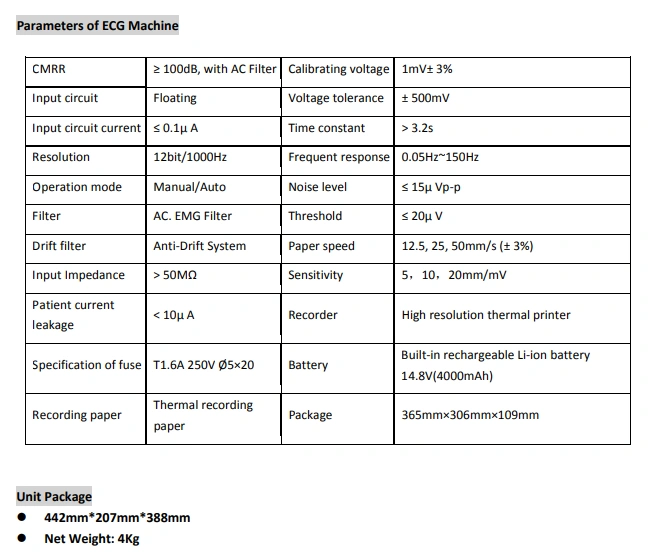

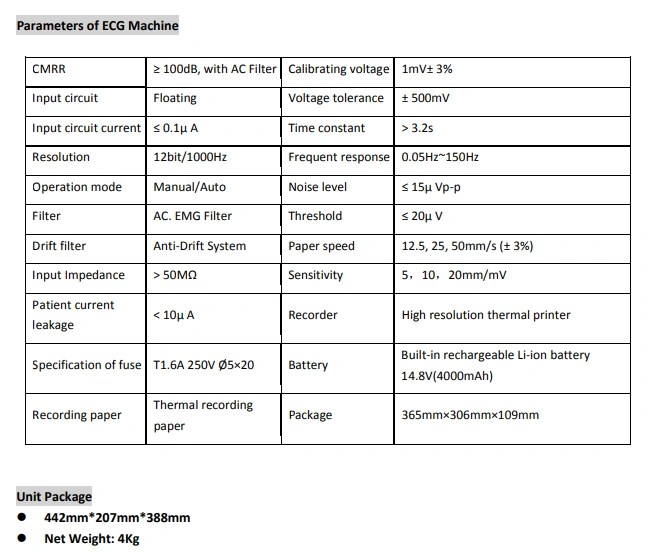

Function Features of ECG Machine

 Modern in design, light in weight, compact in size.
 Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
 10.2” color touch-screen, both push-button and touch operation.
 Sensitive filters of ADS, HUM, and EMG.
 Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can
reduce doctor’s burden and improve working efficiency.
 Automatic adjustment of baseline for optimal recording.
 Thermal printer with 216mm print paper, synchronization print. It is high resolution thermo sensitive printer
and thermal-array (8 dots/mm), you should not adjust anything Frequency Response is up to 150Hz.
 Lead off & lack off paper detection function.
 Built-in rechargeable li-ion battery (14.8V/4400mAh), AC/DC power conversion.
 Adapt to 100-240V, 50/60Hz AC power supply
 Historical data and patient’s information can be reviewed and printed.
 Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback
software.
 The machine can store over 500 ECG reports in its built-in flash.
 Standard RS232 and USB communication interfaces.
 Connect with PC via ECG workstation software.
 Sleep mode to save energy and extend LCD life
 The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark
includes: lead sign, sensitivity, paper speed, filter state, etc.
 Portable design with hidden handle, convenient to carry.
 7 level printing thick can be chosen.
