PneumoSure XL

Insufflation

A 45 liter insufflator that provides integrated heating options.

Insufflator features multiple operating modes and full-color touchscreen

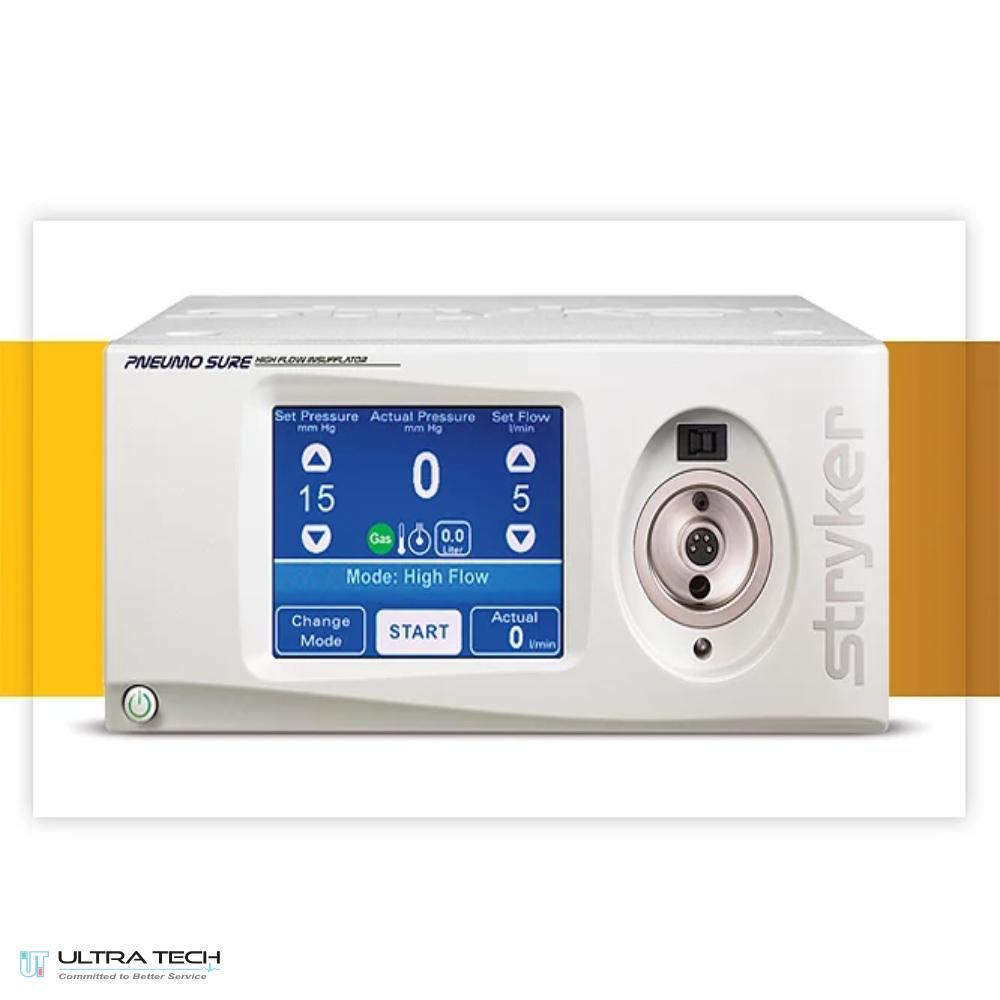

The Stryker PneumoSure 45L Insufflator provides dependable performance and enhanced safety in today’s operating room. With a fully integrated color touchscreen, a spring loaded tube set, and multiple insufflation modes, the Stryker PneumoSure 45L is designed to keep up with even the most demanding environments.

The Stryker PneumoSure 45L is available refurbished from Avante Animal Health. Contact an Avante representative today for more information.

Features

• Insufflator provides dependable performance with enhanced safety.
• Features real-time pressure sensing technology for increased accuracy.
• Maintains pneumoperitoneum under the most demanding conditions.
• Includes fully integrated color touchscreen with intuitive controls for flow, pressure, and volume.
• Redesigned tube set is spring loaded for higher actual flow.
• Additional insufflation modes.
• Co2 flow rate ranges from 3 – 45 liters per minute.
• Optional — gas heating function.

Dimensions

• Width: 12.1 in
• Height: 5.82 in
• Depth: 18.7 in
• Weight: approx. 19.84 lb

Power

• Mains connection cable: 100-240 V line fuse | line fuse T 3.15 A connection for potential equalization
• Frequency: 50-60 Hz
• Max. power consumption: 150 VA
• Max. current consumption: 100 V: 1500 mA; 240 V: 630 mA

Environmental

• Operating temperature range: 50-104°F
• Operating humidity range: 30 – 75% relative humidity
• Storage temperature range: -22 – 158°F
• Storage humidity range: 10 – 85% relative humidity
